DonadonSDD offers GM rupture discs that are designed to protect industrial plants where particularly aggressive fluids are processed from sudden pressure variations that can cause severe damage.

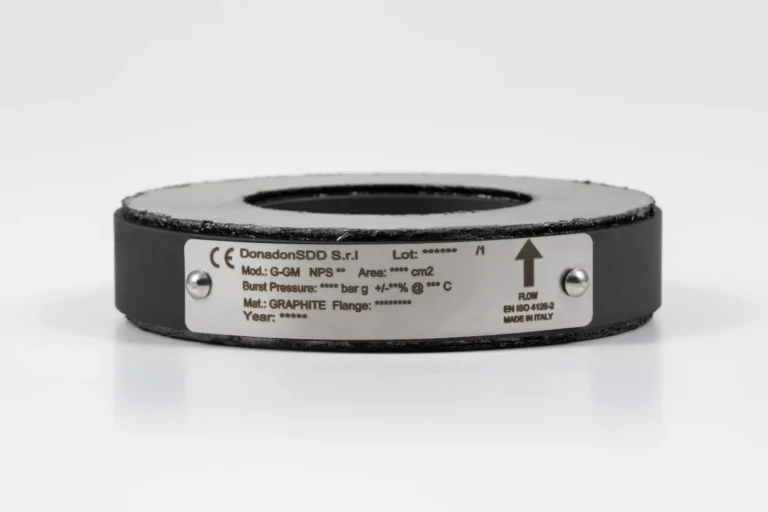

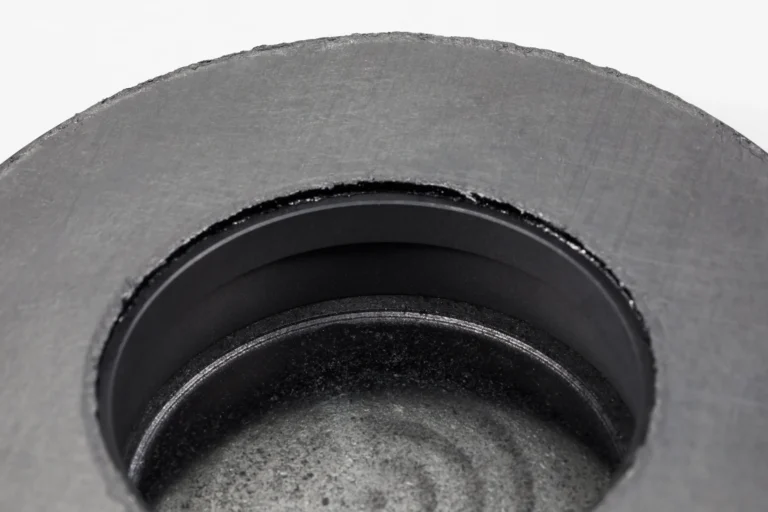

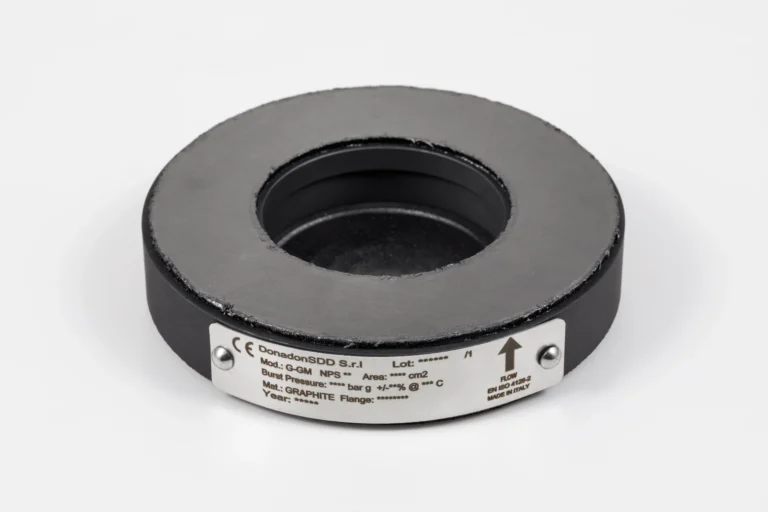

GM Rupture Discs can be mounted directly between flanges and are manufactured in very high purity graphite, impregnated with phenolic resins to guarantee perfect non-permeability.
By the nature graphite bursting discs will fragment upon bursting.
Keyfeatures & technical benefits
High Certification Standards:
Our rupture discs are certified to meet the highest international standards, including PED 2014/68/UE (CE STAMP), PER 2016 UK Statutory Instruments 2016 No 1105 (UKCA STAMP), and CU TR 032 (EAC STAMP).
Temperature Resistance:
Able to withstand temperature up to 200°C.
Vacuum Resistance:
A vacuum support is required for rupture pressures below 1.7 bar g.
Features:
Opening with fragmentation; resistant to aggressive fluids (can be protected with a PTFE membrane too) and low bursting pressure sensitivity to temperature variations.
Why Choose DonadonSDD?
- Our GM rupture discs are certified to meet the highest international safety standards, providing reliable protection for your industrial plant.
- The discs are resistant to aggressive fluids and have low bursting pressure sensitivity to temperature variations, ensuring optimal safety in harsh environments.
- Easy Installation: can be directly inserted between flanges
