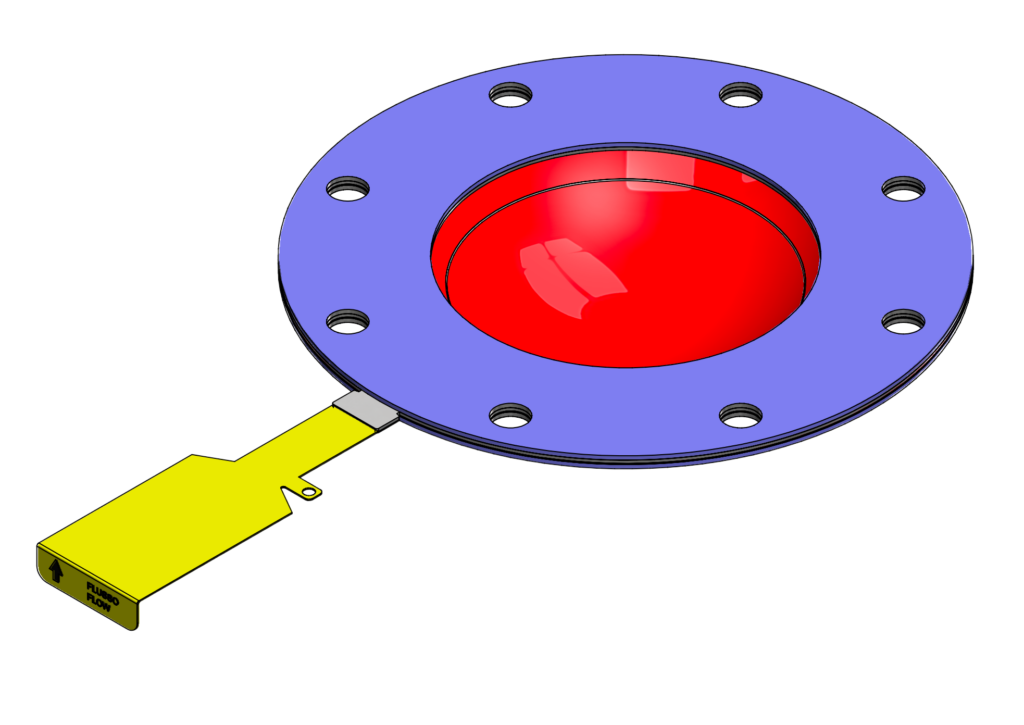

Special rupture disc executions for non-standard specifications
Custom rupture discs manufactured with special materials, dimensions and designs to meet unique process requirements.
Special materials, shapes, and thicknesses for all the toughest applications
A field like that of burst disks sees both such commonplace needs that they justify the existence of standard product lines and such specific situations (whether because of available space, of required pressures, or for the nature of the fluids being processed, for example) that only custom-developed products may manage them in the best possible way.
The Special Executions line of rupture discs by DonadonSDD includes all of these special, tailor-made products, as created by our internal research and development team to exactly match the specific requirements of your industrial plant. A few examples?
- discs and disk holders with a protective fluoropolymeric covering
- disc holders in charged PTFE
- pre-tightened disc holders for quick installation
- discs and disc holders in special metals and alloys, for particular applications and conditions
- executions with proven, certified tightness…
and for any special execution you may require to meet your specific needs, our technical office will get to work to develop it quickly and to full satisfaction.
Contact us today for more information regarding our Special Execution Rupture Discs!
Frequently Asked Questions
Depending on disc’s type, DonadonSDD can supply discs from 1/8” (3mm) up to 40” (1000mm) in diameter.
You can download here the RUPTURE DISC FORM that will guide You to collect all the data required, which can be also summarized as below specified:
- required burst pressure & burst temperature
- nominal size, flange rating & face finishing
- disc and holder material
- vacuum resistance (if requested)
- Pressure Safety Valve protection (if requested)
There are several other factors as well, so DonadonSDD specialists are always at disposal to specify the correct disc for any application. Each and every rupture disc we design and deliver to our customers is scrupulously custom-built, so as to match the industrial plant’s specific and unique needs.
Main Families: Forward / Reverse / Sanitary
The categories of rupture & bursting disks which we manufacture for our customers, are:
- NS NANOSCORED RUPTURE DISCS – a unique, top-performing product.
- SANITARY RUPTURE DISCS – for pharmaceutical, food and biotech industries.
- FORWARD ACTING – the traditional, time-tested solution.
- REVERSE ACTING – sporting better resistance to different operating pressures.
- ULTRA LOW PRESSURE RUPTURE DISCS – sensitive to even the lightest pressures.
- DOUBLE WAY – protects both ways: against pressure and vacuum.
- GRAPHITE RUPTURE DISCS – for aggressive fluids.
- SEALED UNIT – simple and quick to install.
